Privet Villa of Mr. Mohammed AL Duhli
This villa has (Leveling 1&2 + Ground Floor + First Floor + Penthouse + Roof). Modification on structural drawings for all floor plans, which including columns, beams, slabs, and returning wall of the building. As well as main chance of foundation type to be applied. Previously approved structural drawings from Muscat Municipality wasn't able to carry the building as a mass, so we did here re-calculate the entire building " villa ". Some of architectural drawing also were changed asper the new columns appeared in some areas and some of wall has been increased in thickness wise to hide columns which also were been increased by its thickness. The project got approved with its final modification from Muscat Municipality since 22/ Nov /2022.

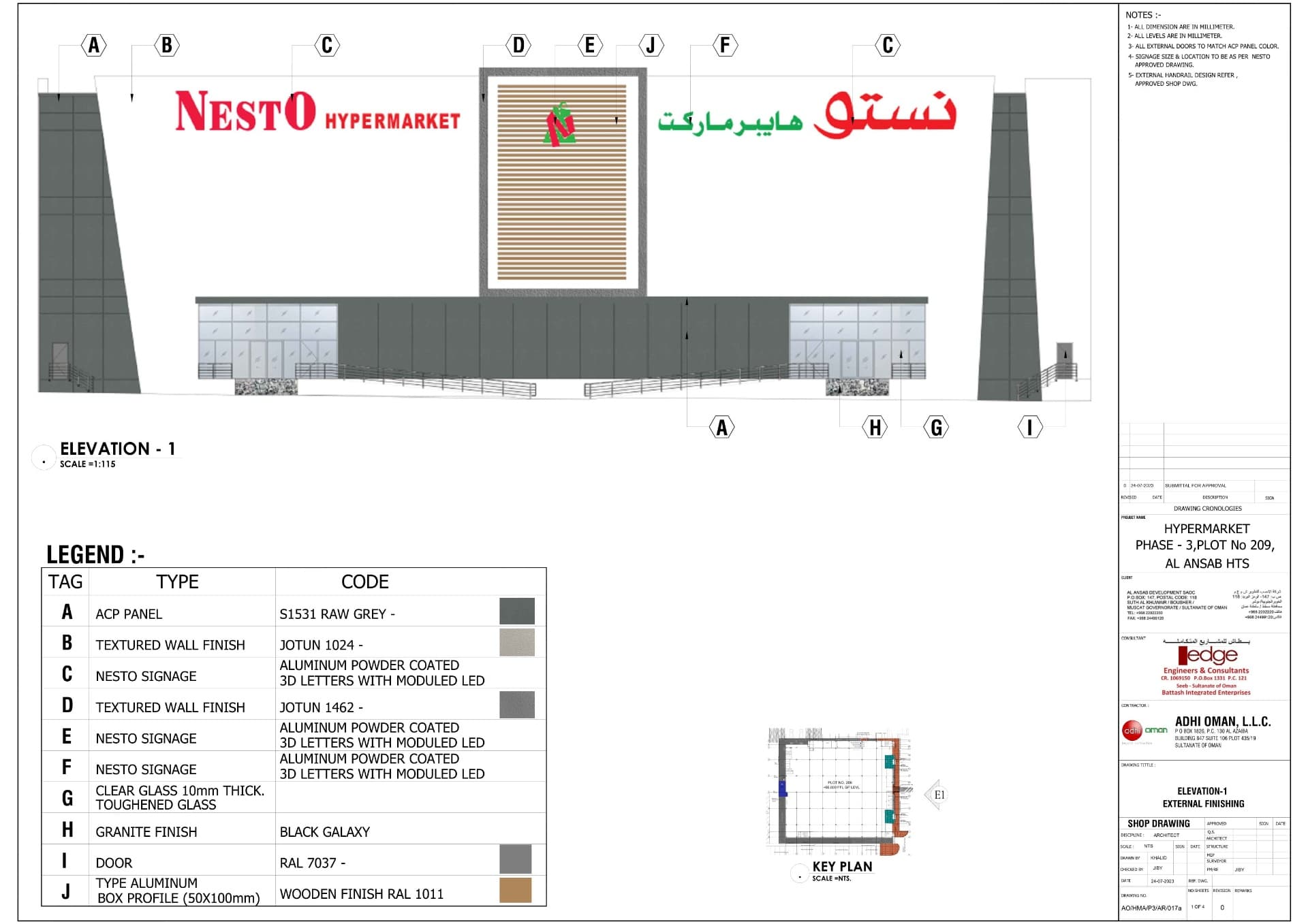

Nesto Hypermarket Ansab / Elevations
Completion Certificate to obtain approval from Muscat Municipality of some elevation changes of materials and increases of height of the building. As per Municipality rules all changes must not goes out of the previous agreement, unless all the changes must be rechecked, so we as a main consultant of this project we have to prepare all the drawings and request comes from the municipality.

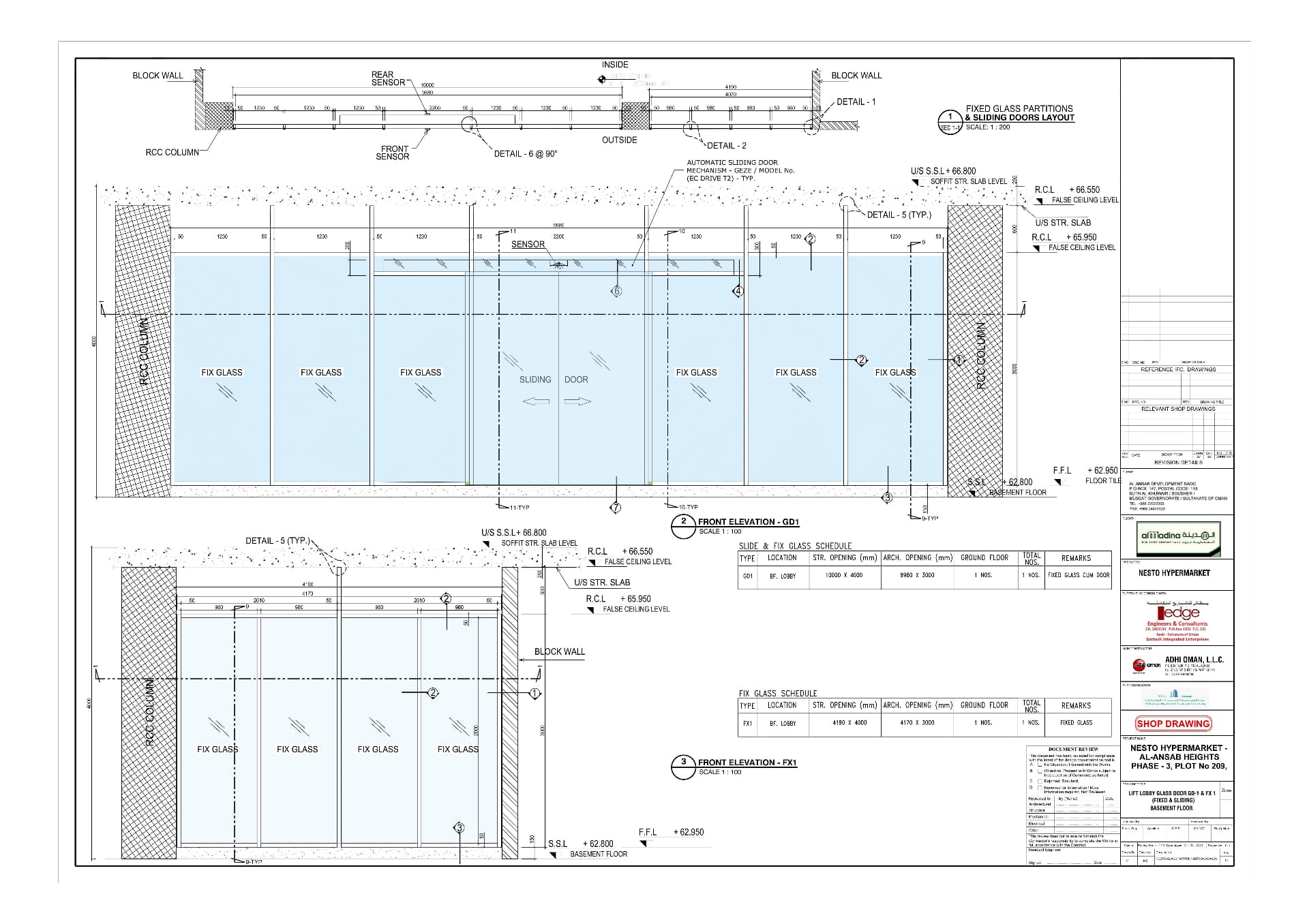

NestO Hypermarket Ansab / Glass Door
Preparing a glass door shop drawings as a sub contractor for the project of commercial building " NestO Hypermarket " to be followed by order material requests and work on installation too which is located at Ansab, Muscat. The project aim as a client request is to provide quality type of sliding / swing & fixed glass doors with a different location at the building itself, while from basement to second floor the ceiling level having differences. The Shop Drawings Contains: 1- Doors Location " Key Plan" 2- Elevations & Sections of Glass Doors. 3- Details.

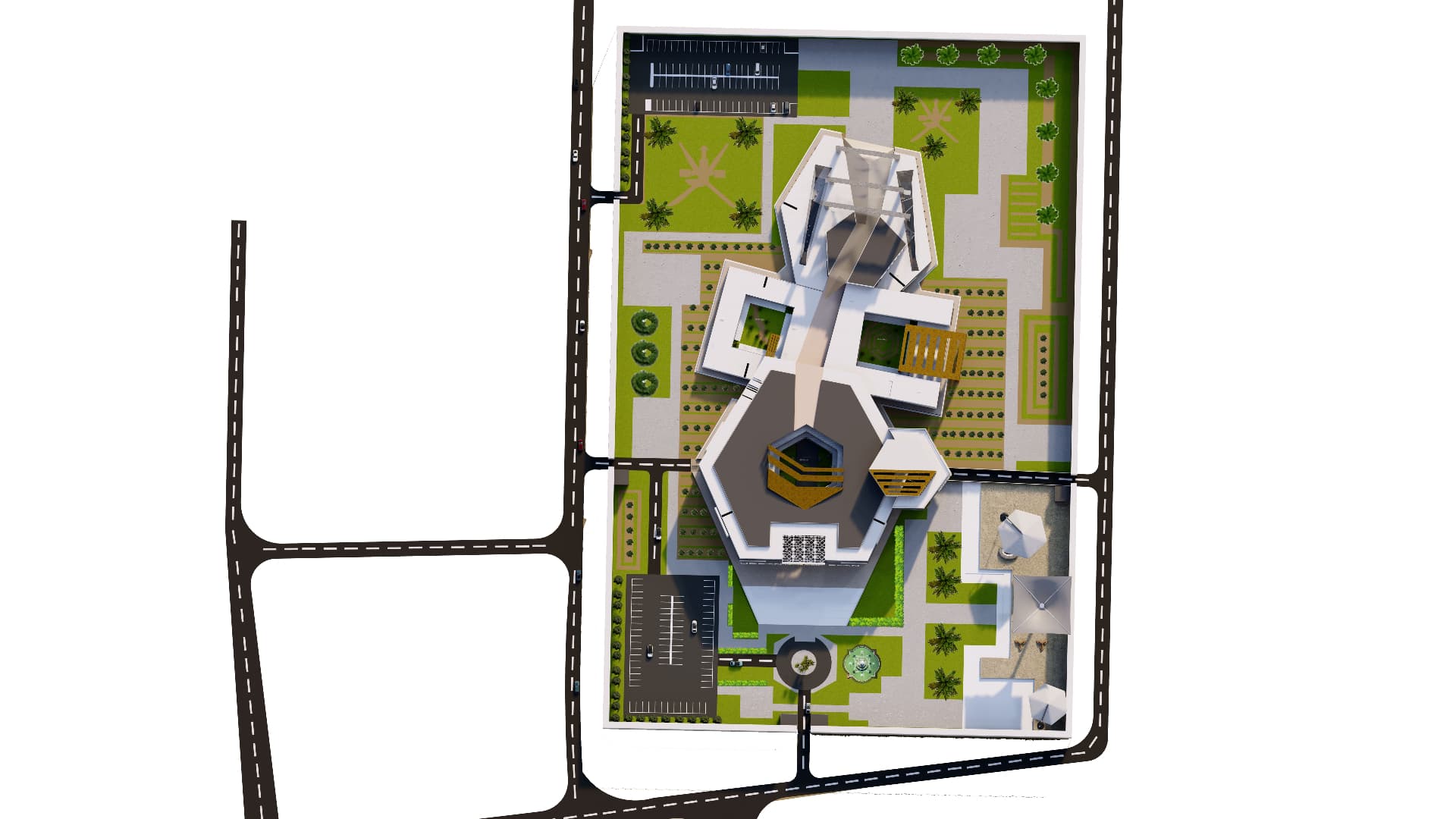

Final Graduation Project
Ministry of Housing & Urban Planning. The main aim of this project is to re-plan the whole building of ministry by new & mordent style (1980), and till now the building is exist. As buildings age, they go under significant wear and tear that includes discoloration, concrete deterioration, foundation damage, salt crystallization, and even microbiological growth from bacteria and fungi. Even with regular maintenance every year, exposure to weather and other environmental factors will significantly deteriorate the building over time. However, that does not necessarily mean the building needs to be torn down. If you have an emotional attachment to the building, sometimes simple foundation repair work, cleaning, patching, and painting will be enough to bring the building back to life while still maintaining the stunning, original design.

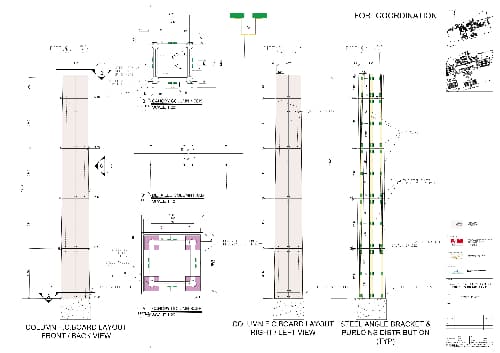

Canopy Cladding Design
Designing canopy cladding in term of insulating by proving architectural & structural drawing designs. Freestanding canopy systems can be specified for numerous project applications, fabricated with a choice of materials, and engineered to meet a range of performance requirements. These steel columns support the canopy’s framing members and panels. Extruded aluminum is the standard material for the canopy’s framing members, specified as 6063-T5, 6005-T5, or 6105-T5 alloy and temper. This material can be manufactured from recycled sources, can be fabricated into any size or geometric shape, or can be formed into curves and barrel-vaulted designs.
